TOUGH SHELL PRO BULKHEAD 325MM DIA IP66 8/12/16W 3000/4000/6000K IK10 110 BEAM NON-DIMM WHITE 120LM/W INTEGRAL

What it is

The Integral LED Tough Shell Pro offers 120lm/W efficacy and modular functionality for easy and effective illumination in any setting.

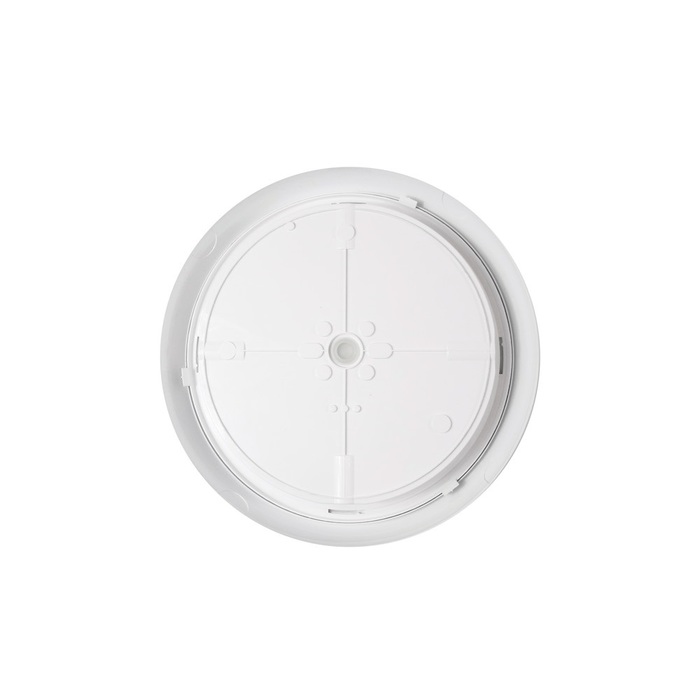

Suitable for indoor and outdoor installations, the luminaire’s polycarbonate body offers IK10 and IP66 protection to withstand even the toughest environments, whilst the back-lit LED design with frosted diffuser provides even, shadow-free light distribution over a 110° beam angle. The housing features BESA mounting and 4 side conduit entry points to streamline installation.

3000K, 4000K and 6000K CCT and power switchable as standard to match the needs of any application, the Tough Shell Pro is compatible with a variety of accessories to upgrade the look and functionality of the luminaire. Easily upgrade a standard luminaire to emergency and/or sensor control including corridor functionality with plug & play modules.

Supplied with a white bezel.

Key Specs

Wattage: 8/12/16W

Luminous Flux: 960 to 1920

IP Rating: IP66

IK Rating: IK10 (impact resistant)

Material: Tough polycarbonate housing

Dimensions: Depth 75mm & 325mm diameter

Lifetime: Up to 30,000 hours

Warranty: 3 years

What makes it different

Power & CCT swtichable, the tough casing IK10 & IP66. Soft light for walls and ceilings, shadow-free even light distribution. Plug & play sensors (Standard MW and Corridor functions), Comes also with emergency pack.

Typical use cases

Outdoor areas: Such as porches, stairwells, and entrance ways that require weatherproof

Commercial environments: Warehouses, factories, and garages where robust, reliable lighting is essential.

Public spaces: Parks, bus stations, and other outdoor public facilities needing secure lighting.

Residential applications: Ideal for garden paths, driveways, and outdoor living spaces to enhance safety and security.
